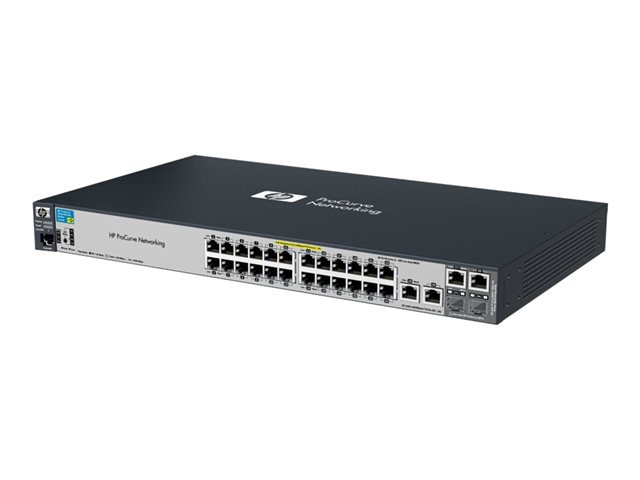

HP E2520-24-PoE Switch - switch - 24 ports - managed - rack-mountable

Mfg. Part: J9138A#ABA|CDW Part: 1864082|UNSPSC: 43222612
  • Switch
  • managed
  • 24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000
  • rack-mountable
  • PoE
Availability:3-6 business days
Most orders ship within 3-6 business days. See Terms & Conditions
Check Warehouse Availability ▼
 Close
Warehouse LocationAvailableQuantity Incoming
Inventory quantities are delayed by 15 minutes.
$828.99Advertised Price
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.972.3922
Mon-Fri 7am-7:30pm CT
Product Overview
Main Features
  • Switch
  • managed
  • 24 x 10/100 + 2 x combo Gigabit SFP + 2 x 10/100/1000
  • rack-mountable
  • PoE
The HP 2520 switch series is ideally suited for small and medium businesses looking to deploy voice, video, or wireless solutions that require Power over Ethernet (PoE) connectivity. The series consists of four switches: the HP 2520-8-PoE, 2520-24-PoE, 2520-8G-PoE, and 2520-24G-PoE Switches. The four models offer a choice of either Fast Ethernet or Gigabit Ethernet connectivity. All models also include support for dual-personality Gigabit Ethernet ports that can be used for either copper or fiber connectivity. All products are fully managed via SNMP, command-line interface (CLI), and graphical user interface (GUI) and offer a Layer 2 feature set. In addition, the products provide deployment flexibility with compact, quiet, and energy-efficient designs.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Interface Provided
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX
Qty: 24



Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Qty: 4



Connector Type: RJ-45
Qty: 1
Type: Console



Connector Type: SFP (mini-GBIC)
Qty: 2

Networking
Auxiliary Network Ports: 2x10/100/1000Base-T/SFP (mini-GBIC), 2x10/100/1000Base-T
Cabling Type: Ethernet 100Base-TX , Ethernet 10Base-T
Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3u , IEEE 802.3x
Connectivity Technology: Wired
Features: Auto-uplink (auto MDI/MDI-X) , Flow control , IPv6 support , Jumbo Frames support , Layer 2 switching , Manageable , Port mirroring , Quality of Service (QoS) , Trunking , VLAN support
Form Factor: External , Rack-mountable
MAC Address Table Size: 8K entries
Manageable: Yes
Ports Qty: 24
Power Over Ethernet (PoE): PoE
Remote Management Protocol: HTTP , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3
Routing Protocol: IGMPv3
Status Indicators: Fail , Link activity , Port duplex mode , Port transmission speed , Power , Status
Subcategory: Network hubs and switches
Subtype: Fast Ethernet
Type: Switch

Miscellaneous
Authentication Method: RADIUS , Secure Shell v.2 (SSH2) , TACACS+
Compliant Standards: CISPR 22 Class A , CISPR 24 , CSA 22.2 No. 60950 , cUL , EN 60950 , EN 61000-3-2 , EN 61000-3-3 , EN55022 , EN55024 , FCC Class A certified , IEC 60950 , IEC 61000-3-2 , IEC 61000-3-3 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , UL 60950 , VCCI Class A ITE
Encryption Algorithm: SSL
Height (Rack Units): 1
Rack Mounting Kit: Optional

Bay Required
Type: None

Environmental Parameters
Humidity Range Operating: 15 - 95%
Max Operating Temperature: 45 °C
Min Operating Temperature: 0 °C

Header
Brand: HP
Compatibility: PC
Manufacturer: Hewlett-Packard
Model: 2520-24-PoE Switch
Packaged Quantity: 1
Product Line: HP

Power Device
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Type: Internal power supply

Processor
Clock Speed: 266 MHz
Installed Qty: 1
Manufacturer: Freescale

Slot Required
Type: None

Dimensions & Weight
Depth: 24.6 cm
Height: 4.5 cm
Weight: 3.2 kg
Width: 44.3 cm

Service & Support
Type: Lifetime warranty

Flash Memory
Installed Size: 32 MB
Type: Flash

Ports
Qty: 24
Type: 10/100

Ports (2nd)
Qty: 2
Type: Combo Gigabit SFP

Ports (3rd)
Qty: 2
Type: 10/100/1000

RAM
Installed Size: 128 MB
Technology: DDR2 SDRAM
