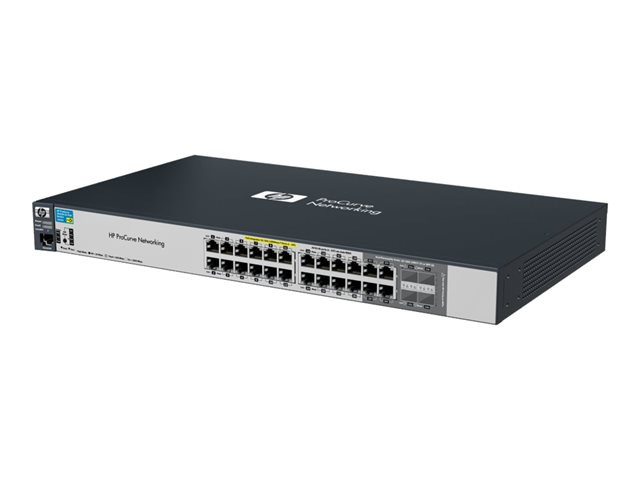

HP 2520-24G-PoE Switch - switch - 24 ports - managed - rack-mountable

Mfg. Part: J9299A#ABA|CDW Part: 1864086|UNSPSC: 43222612
HP 2520-24G-PoE Switch - switch - 24 ports - managed - rack-mountable
  • Switch
  • managed
  • 24 x 10/100/1000 + 4 x shared SFP
  • rack-mountable
  • PoE
Availability:In stock
Ships same business day if ordered before 3pm ET
Check Warehouse Availability ▼
 Close
Warehouse LocationAvailableQuantity Incoming
Inventory quantities are delayed by 15 minutes.
$1,542.99Advertised Price
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.972.3922
Mon-Fri 7am-7:30pm CT
Product Overview
Main Features
  • Switch
  • managed
  • 24 x 10/100/1000 + 4 x shared SFP
  • rack-mountable
  • PoE
The HP ProCurve 2520 switch series is ideally suited for small and medium businesses looking to deploy voice, video, and/or wireless solutions that require Power over Ethernet (PoE) connectivity. The HP ProCurve 2520G-24-PoE is fully managed via SNMP, command-line interface (CLI), and graphical user interface (GUI) and offer a Layer 2 feature set. In addition, the product provides deployment flexibility with compact, quiet, and energy-efficient designs.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Interface Provided
Connector Type: RJ-45
Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Qty: 24



Connector Type: RJ-45
Qty: 1
Type: Console



Connector Type: SFP (mini-GBIC)
Qty: 4

Networking
Cabling Type: Ethernet 1000Base-T , Ethernet 100Base-TX , Ethernet 10Base-T
Compliant Standards: IEEE 802.1ab (LLDP) , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1s , IEEE 802.1x , IEEE 802.3 , IEEE 802.3ab , IEEE 802.3ad (LACP) , IEEE 802.3af , IEEE 802.3u , IEEE 802.3x
Connectivity Technology: Wired
Empty Slots: 4 x shared SFP (mini-GBIC)
Features: Auto-uplink (auto MDI/MDI-X) , Flow control , IPv6 support , Jumbo Frames support , Layer 2 switching , Manageable , Port mirroring , Quality of Service (QoS) , Trunking , VLAN support
Form Factor: External , Rack-mountable
MAC Address Table Size: 8K entries
Manageable: Yes
Ports Qty: 24
Power Over Ethernet (PoE): PoE
Remote Management Protocol: HTTP , RMON 1 , RMON 2 , RMON 3 , RMON 9 , SNMP 1 , SNMP 2c , SNMP 3
Routing Protocol: IGMPv3
Status Indicators: Fail , Link activity , Port duplex mode , Port transmission speed , Power , Status
Subcategory: Network hubs and switches
Subtype: Gigabit Ethernet
Type: Switch

Miscellaneous
Authentication Method: RADIUS , Secure Shell v.2 (SSH2) , TACACS+
Compliant Standards: CISPR 22 Class A , CISPR 24 , CSA 22.2 No. 60950 , cUL , EN 60950 , EN 61000-3-2 , EN 61000-3-3 , EN55022 , EN55024 , FCC Class A certified , IEC 60950 , IEC 61000-3-2 , IEC 61000-3-3 , IEC 61000-4-11 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , UL 60950 , VCCI Class A ITE
Encryption Algorithm: SSL
Height (Rack Units): 1
Rack Mounting Kit: Optional

Bay Required
Type: None

Environmental Parameters
Humidity Range Operating: 15 - 95%
Max Operating Temperature: 45 °C
Min Operating Temperature: 0 °C

Header
Brand: HP
Compatibility: PC
Manufacturer: Hewlett-Packard
Model: 2520-24G-PoE Switch
Packaged Quantity: 1
Product Line: HP

Power Device
Frequency Required: 50/60 Hz
Nominal Voltage: AC 120/230 V
Type: Internal power supply

Processor
Clock Speed: 266 MHz
Installed Qty: 1
Manufacturer: Freescale
Type: PowerPC

Service
Support Details Full Contract Period: Lifetime
Support Details Type: Limited warranty

Slot Required
Type: None

Dimensions & Weight
Depth: 24.6 cm
Height: 4.5 cm
Weight: 3.2 kg
Width: 44.3 cm

Service & Support
Type: Limited lifetime warranty

Flash Memory
Installed Size: 32 MB
Type: Flash

Ports
Qty: 24
Type: 10/100/1000

Ports (2nd)
Qty: 4
Type: Shared SFP

RAM
Installed Size: 128 MB
Technology: DDR2 SDRAM
