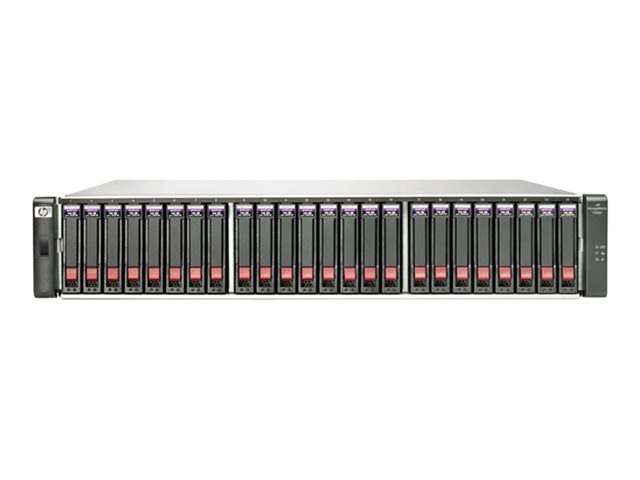

HP StorageWorks Modular Smart Array P2000 G3 iSCSI Dual Controller - hard d

Mfg. Part: BV911A|CDW Part: 2309628|UNSPSC: 43201802
  • Hard drive array
  • 7.2 TB
  • 24 bays ( SATA-300 / SAS-2 )
  • 24 x 300 GB
  • iSCSI (external)
  • rack-mountable
  • 2U
Availability:3-6 business days
Most orders ship within 3-6 business days. See Terms & Conditions
Check Warehouse Availability ▼
 Close
Warehouse LocationAvailableQuantity Incoming
Inventory quantities are delayed by 15 minutes.
$18,929.99Advertised Price
Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.972.3922
Mon-Fri 7am-7:30pm CT
Product Overview
Main Features
  • Hard drive array
  • 7.2 TB
  • 24 bays ( SATA-300 / SAS-2 )
  • 24 x 300 GB
  • iSCSI (external)
  • rack-mountable
  • 2U
How can the flexibility of the HP P2000 G3 MSA Array Systems help remedy large storage needs and small budgets? By offering high-performance 8 Gb FC, Combo FC/iSCSI, 6 Gb SAS, 1 Gb or 10 GbE iSCSI connected arrays designed for efficient storage consolidation at affordable prices. The FC/iSCSI Combo controller gives the flexibility to share the array resources over two protocols, supporting the needs of dissimilar departments and budgets. All P2000 G3 MSA Arrays ship standard with 64 Snapshots and Volume Copy enabled for increased data protection. The FC, Combo FC/iSCSI, and iSCSI controllers allow replication with optional Remote Snap software. The arrays allow departments and small to medium businesses to grow capacity as needed up to 149 drives. Mixing of LFF and SFF enterprise-class SAS and archival-class SATA drives is supported. Configure with a single controller for low initial cost, or dual controllers for high availability for the most demanding entry-level situations.

Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Bay Provided
Form Factor: 2.5" SFF
Free Qty: 0
Total Qty: 24

Environmental Parameters
Humidity Range Operating: 10 - 90% (non-condensing)
Max Operating Temperature: 40 °C
Min Operating Temperature: 5 °C

Header
Brand: HP
Compatibility: PC
Manufacturer: Hewlett Packard
Model: P2000 G3 iSCSI Dual Controller
Packaged Quantity: 1
Product Line: HP StorageWorks Modular Smart Array

Interface Provided
Connector Type: RJ-45
Interface (Storage): Ethernet 1000Base-T
Qty: 8



Connector Type: Mini-USB Type B
Interface (Storage): Management
Qty: 2



Connector Type: 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)
Interface (Storage): SAS 6Gb/s

Miscellaneous
Compliant Standards: CISPR 22 Class A , CISPR 24 , CSA C22.2 No. 60950-1-03 , EN 60950-1 , EN55022 , EN55024 , FCC CFR47 , ICES-003 Class A , IEC 60950-1 , RoHS 6/6 , UL 60950-1
Height (Rack Units): 2

Networking
Data Link Protocol: Gigabit Ethernet

Storage
HDD Array External Interface: iSCSI
HDD Array External Interface Class: iSCSI
Maximum LUNs: 512
Rack-mountable: Rack-mountable
Total Array Capacity: 7.2 TB
Type: Hard drive array

Storage Controller
Buffer Size: 2 GB
Bus Type: iSCSI
Data Transfer Rate: 600 MBps
Installed Qty: 2
Interface Type: Serial ATA-300 / SAS 2.0
RAID Level: RAID 0 , RAID 1 , RAID 10 , RAID 3 , RAID 5 , RAID 50 , RAID 6
Supported Devices: Disk array (RAID)
Type: RAID

Storage Hard Drive
Capacity: 300 GB
Interface Type: Serial Attached SCSI 2

System Requirements
Min Operating System: HP OpenVMS , HP-UX , Microsoft Windows Server 2003 , Microsoft Windows Server 2003 R2 , Microsoft Windows Server 2003 R2 Enterprise Edition SP2 , Microsoft Windows Server 2008 Datacenter x64 Edition , Microsoft Windows Server 2008 Enterprise x64 Edition , Microsoft Windows Server 2008 Standard x64 Edition , Red Hat Linux , SuSE Linux Enterprise Server

Chassis
Installed Devices Modules Qty: 24
Supported Devices Modules Qty: 24
Supported Interface: Serial ATA-300 / SAS 2

Dimensions & Weight
Depth: 51.1 cm
Height: 8.9 cm
Weight: 14.7 kg
Width: 44.7 cm

Expansion Bays
Form Factor (metric): 6.4 cm SFF

Hard Drive
Installed Qty: 24
Spindle Speed: 10000 rpm
Type: None.

Power Device
Frequency Required: 50 - 60 Hz
Hot-Plug: Hot-plug
Installed Qty: 2
Nominal Voltage: AC 120/230 V
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Type: Internal power supply
