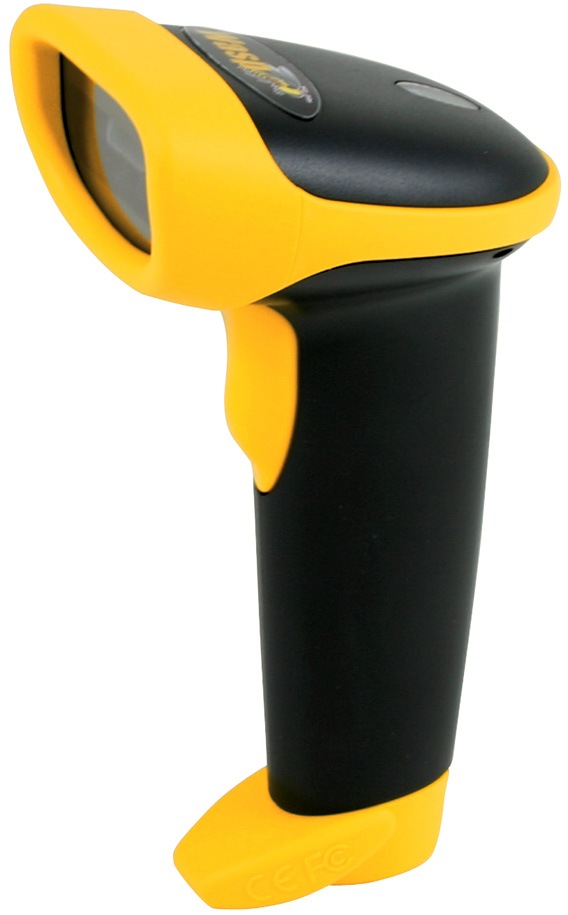

Wasp WWS500 Cordless Freedom Scanner

Mfg. Part: 633808920401|CDW Part: 1381828|UNSPSC: 43211701
  • Wasp WWS500 Freedom Scanner
  • Cordless Barcode Scanner
  • Bluetooth
Availability:3-6 business days
Most orders ship within 3-6 business days. See Terms & Conditions
Check Warehouse Availability ▼
 Close
Warehouse LocationAvailableQuantity Incoming
Inventory quantities are delayed by 15 minutes.
CallCall


This item was discontinued on February 27, 2013.

Sales Assistance

800.972.3922 Mon-Fri 8am-6pm ET

Answer within 24 hours.



Untitled Document
Close

Have leasing questions? Let us know how can we help.

Note: Leasing is available to businesses only. Leasing is not available to individuals.
800.972.3922
Mon-Fri 7am-7:30pm CT
Product Overview
Main Features
  • Wasp WWS500 Freedom Scanner
  • Cordless Barcode Scanner
  • Bluetooth
Wasp Barcode Technologies is introducing the new WWS500 Cordless Freedom Scanner – an exciting new addition to Wasp’s Freedom Scanner line. The WWS500 will be shipping on or before Oct 26, 2007.

Simplicity and ease of use are the hallmarks of this new cordless scanner. Simply plug the Bluetooth USB adapter into an available USB slot of a PC. Or use the built-in Bluetooth of mobile devices (eg. Smartphones, PDAs) to connect with the WWS500. The WWS500 is ready to go using Bluetooth wireless connectivity providing a range of up to 300’ away from the PC or mobile device.

An integrated rechargeable battery provides exceptionally long scan life on a single charge. The unit has an out of range indicator as well as low battery warning. The CCD LR scan engine scans all popular linear (1D) barcodes with a scan range up to 10” away from the barcode.

It’s an ideal scanning device where cordless connectivity is desired in customer settings such as retail, warehouse and distributor centers and office environments. The design is lightweight, ergonomic yet withstands repeated drops to concrete from up to 5’.
Technical Specifications
Specifications are provided by the manufacturer. Refer to the manufacturer for an explanation of the print speed and other ratings.
Barcode
Barcodes: China Post , Codabar , Code 11 , Code 128 , Code 32 , Code 39 , Code 39 Full ASCII , Code 93 , EAN/JAN-13 , EAN/JAN-8 , IATA , Industrial 2 of 5 , Interleaved 2 of 5 , Matrix 2 of 5 , MSI-Plessey , NW-7 , Telepen , UCC/EAN-128 , UK-Plessey , UPC-A , UPC-E
Light Source Wave Length: 625-660 nm
Max Scan Field: 12 cm, 4.72 in
Min Scan Field: 1.97 in, 5 cm
Minimum Bar Width: 5 , 5 mil

Battery
Installed Qty: 1
Technology: Lithium ion

Environmental Parameters
Drop Specification: 1.5 m , 5 ft
Humidity Range Operating: 10 - 95%
Max Operating Temperature: 104 °F, 40 °C
Min Operating Temperature: 41 °F, 5 °C

Header
Compatibility: PC
Manufacturer: Wasp Bar Code
Model: WWS500 Freedom Cordless Scanner
Packaged Quantity: 1
Product Line: Wasp

Input Device
Connectivity Technology: Wireless
Interface Type: Bluetooth

Interface Required
Connector Type: 4 pin USB Type A
Total Qty: 1
Type: USB

Miscellaneous
Compliant Standards: CE , FCC Class B certified
Included Accessories: USB Bluetooth adapter

Networking
Wireless Connectivity: Bluetooth

Power Device
Form Factor: External
Type: Power adapter

Scanner
Form Factor: Portable
Scan Element Type: CCD
Scan Speed: 230 , 230 scan / sec
Type: Barcode scanner

Service
Support Details Type: Limited warranty

Slot Required
Type: None

Software
Type: Drivers & Utilities

System Requirements
Min Operating System: Microsoft Windows 2000 , Microsoft Windows Server 2003 , Microsoft Windows Vista , Microsoft Windows XP SP2

Dimensions & Weight
Depth: 2.4 in, 6.1 cm
Height: 16 cm, 6.3 in
Weight: 160 g, 5.6 oz
Width: 10.7 cm, 4.2 in
