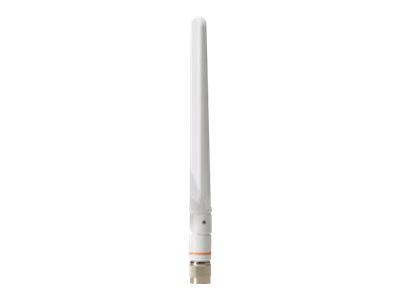

Cisco Aironet Dual-band Self-identifying - antenna
Mfg # AIR-ANT2524DW-RS
CDW # 6220637
Quick tech specs
- band Self-identifying
- dipole
- 2 dBi (for 2.4 GHz)
- indoor
- for P/N: C9115AXE-EWC-B-EDU
- C9115AXE-Z-RF
- C9120AXE-Q
- Antenna
- Wi-Fi
- 4 dBi (for 5 GHz)
- white
- C9115AXE-EWC-E-RF
- C9120AXE-E-WS
Know your gear
The AIR-ANT2524DW-RS antenna includes circuitry to enable self identification of the antenna by the Cisco Catalyst 91xx Series access points. The self identifying function is indicated by a purple band on the antenna. Ensure this antenna is connected to Port A on the AP, which is also designated by purple text around the RP-TNC connector. This antenna has a built-in EEPROM that can be read by the AP to automatically configure the antenna type and gain in the Wireless LAN Controller.
