Quick tech specs
  • Industrial-grade switch expands Ethernet connectivity to factory floors/other environments with space constraints and wide temperature ranges
  • Industrial-grade switch supports operating temperature range of -40 to 167F
  • Plug-and-play operation with no software or configuration before use
  • 3 Year Tripp Lite Warranty
  • 5 auto-negotiable 10/100/1000 Mbps RJ45 ports connect devices over a LAN
  • Easy-to-read LEDs indicate connection and activity status for all Ethernet ports
  • TAA Compliant
View All

Know your gear

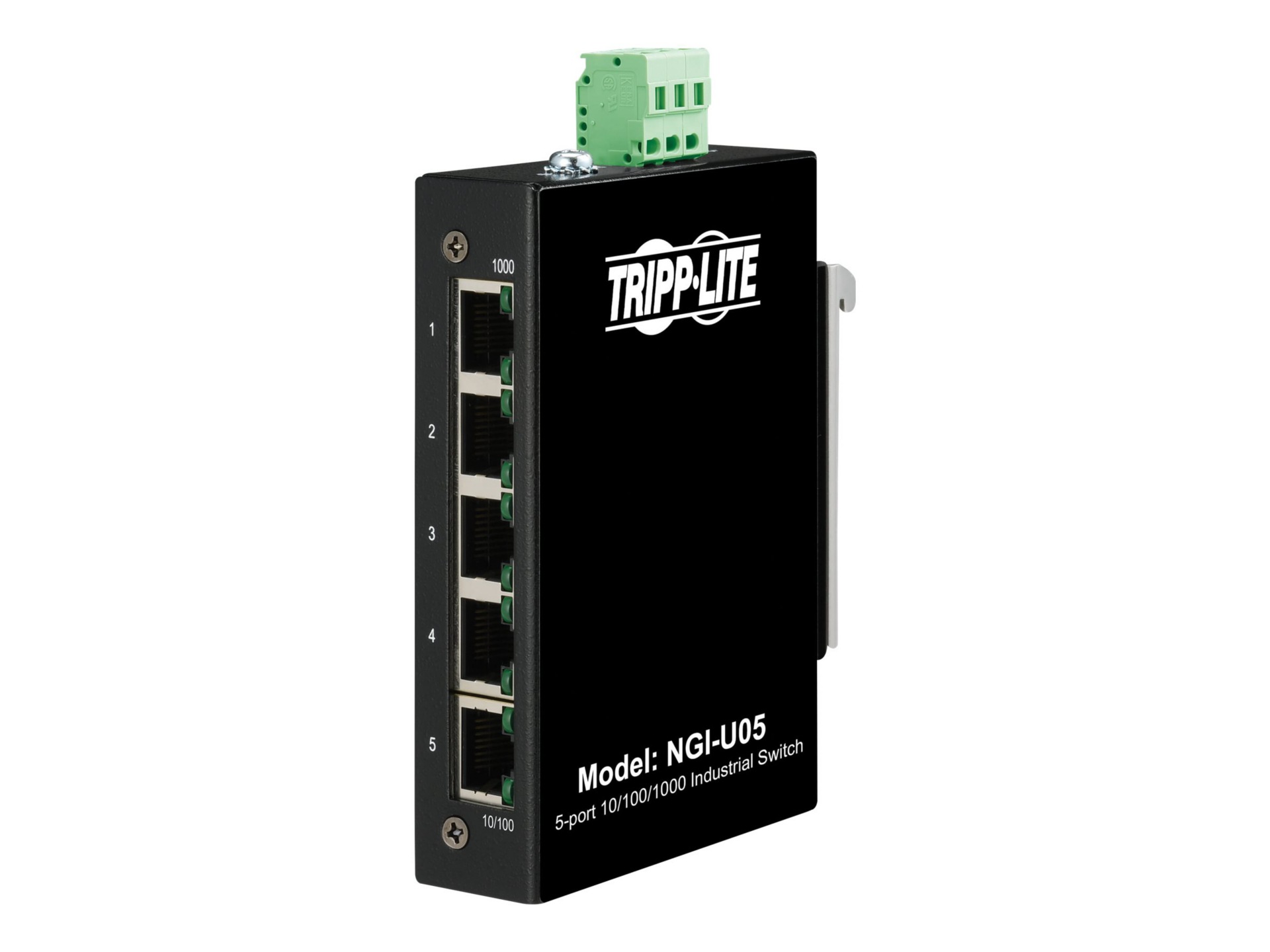

The NGI-U05 adds Gigabit Ethernet capacity to your industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. You can share large bandwidth-intensive files, such as CAD drawings and videos, improving efficiency and cutting costly downtime. The industrial-grade switch with its rugged high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.

Because it is an unmanaged switch, the NGI-U05 does not require configuration before use. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U05 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted vertically or horizontally using the rear mounting holes. A 3-pin 9 - 48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.
Availability: In Stock
